特 点 FEATURES |
|
|
|
|
|
|
|

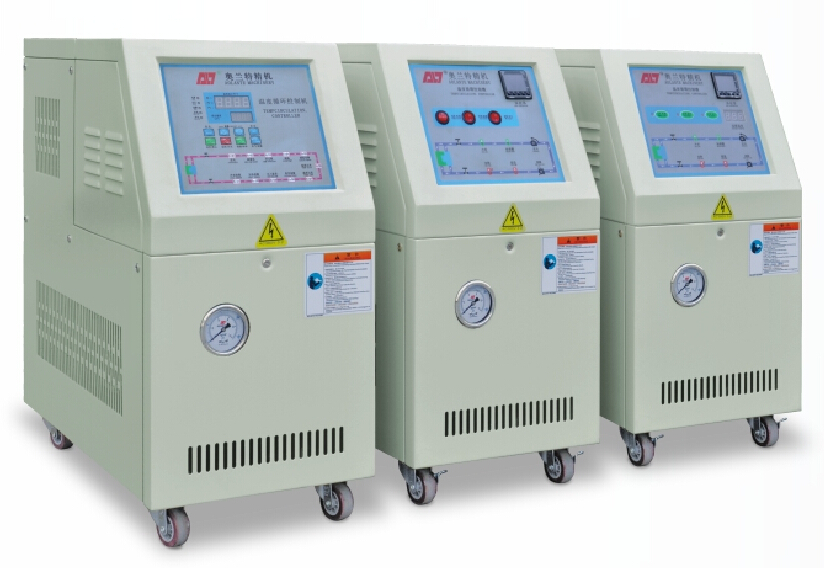

奥兰特180℃高温水温机有发热管防干烧系统，高压防暴系统，采用进口富士接触器，台湾进口元新高温水泵。 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.管路防爆装置 |
|
|
|
|
|
|
|
Explosion/proof equipment for pipelines |
|
|
|
|
|
|
|
2.吹气回水功能（选购） |
|
|
||||
|
Air blowing and return water function（optional) |
|
|
||||
|
3.回水温度显示表 |
|
|
||||
|
Thermometer for return water |
|
|
||||
|
4.开机自动排气功能 |
|
|
||||
|
Automatic air-exhausting function after startup |
|
|
||||
|
5.加热功率切换功能 |
|
|
||||
|
Switchover of heating power |
|
|
||||
|
6.热水BY-PASS泄压回路 |
|
|
||||
|
BY-PASS pressure release loop for hot water |
|
|
||||
|
7.多点温度控制机组可订作 |
|
|
||||
|
Customizable multi-point temperature control unit |
|
|
||||
|
8.水泵马力和加热功率可订作 |
|
|
||||
|
Customizable horsepower and heating power of oil pump |
|
|
||||
|
9.即实时冷却关机功能(选购) |
|
|
||||
|
Instant cooling return oil shut-down function (optional) |
|
|||||
|
10.控制方式: 采用进口微电脑或(选购)PLC控制 |
||||||
|
Control mode: imported microcomputer or PLC (optional) |
||||||
|
11.温度控制范围: 进水温+30℃→180℃ |
||||||
|
Range of temperature control: +30℃→180℃ for incoming water |
||||||
|
12.隔离式电器控制箱. 延长电器使用年限 |
||||||
|
Isolated electric box for longer services lives of electric appliances |
||||||
|
13.RS485通讯功能, 实现自动化管理.(选购) |
||||||
|
RS485 communication function for automated management (optional) |
||||||
|
14.304不锈钢一体管路,减少管阻及锈垢 |
||||||
|
304 stainless steel integrated pipelines for less pipe resistance and rust |
||||||
|
15.电器采用OMRON. FUJI. TE. LG.MOELLR.ABB.WEST |
||||||
|
Brands OMRON, FUJI, TE and LG.MOELLER.ABB and WEST for electric appliances |
||||||
|
16 高压防爆强制冷却,泄压 |
|
|
||||
|
High-pressure explosion-proof forced cooling, relief-pressure |
||||||
|
17.安全保护完善,故障显示, 维修.保养无需专业人员 |
||||||
|
Perfect safety protection, fault display, easy repair and maintenance even without professionals |
||||||
|
|
||||||
|
规格SPEIFICATIONS |
|
|
||||
|
|
|
|
|
|
|
|
|
模型Model |
单位UNIT |
TWH-10 |
TWH-20 |
TWH-30 |
TWH-40 |
TWH-50 |
|
温控范围 Control range |
℃ |
180℃ |
||||
|
温控精度Temp.control accuracy |
℃ |
PID±1℃ |
||||
|
电源 Power supply |
|
AC 3φ380V50HZ（or other)或其它 |
||||
|
传热媒体Heat.transfer medium |
|
水 Water |
||||
|
冷却方式 Cooling method |
|
间接冷却INDIRECT C00LING |
||||
|
加热能量Heating capacity |
KW |
9 |
12 |
18 |
24 |
24/36 |
|
泵浦马力（功率）Horsepower of Pump |
HP/KW |
0.5/0.37 |
0.5/0.37 |
1/0.75 |
1/0.75 |
2/1.5 |
|
泵浦工作流量Working flow of pump |
L/MIN |
35 |
35 |
100 |
100 |
180 |
|
泵浦工作压力Working pressure of pump |
KG/C㎡ |
2 |
2 |
2.2 |
2.2 |
2.4 |
|
大电力消耗Maximum power consumption |
KW |
6.5 |
6.5 |
10 |
10 |
11 |
|
警报功能 Alarm function |
|
缺相/缺水/超温/过载/反转 |
||||
|
冷却水配管Cooing water pipework |
INCH |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
循环水配管Circulating water pipework |
INCH |
3/8x4 |
3/8x4 |
3/8x4 |
1.2 |
1.2 |
|
外型尺寸External dimensions |
MM |
820x320x770 |
820x320x770 |
820x320x770 |
1200x500x1100 |
1200x500x1100 |
|
重量 Weighht |
KG |
122 |
126 |
132 |
|
|
|
以上规格如有变更，恕不另行通知，特殊规格及多机一体机型可定制。Special design upon request |
||||||
