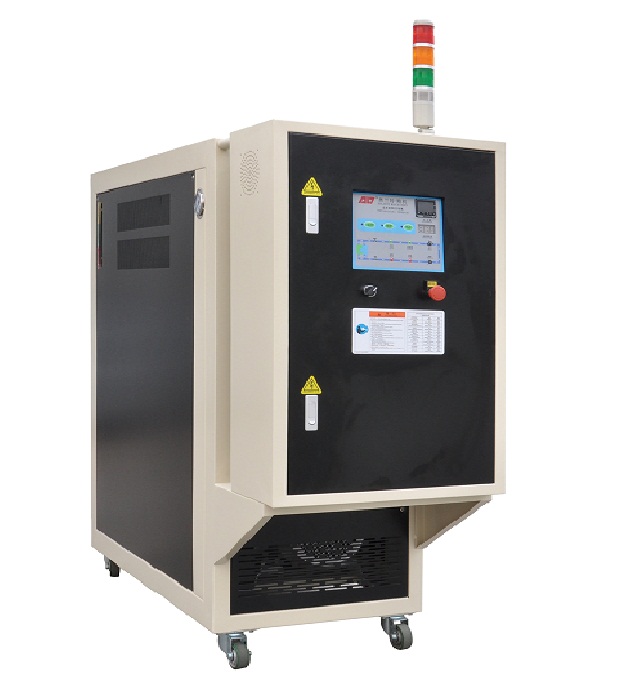

产品详情
特 点:
Features
管路防爆装置
Explosion-proof equipment for pipelines
吹气回油功能
Air blowing and return oil return function
回油温度显示表
Thermometer for return oil
开机自动排气功能
Automatic air-exhausting function after startup
加热功率切换功能
Switchover of heating power
负压系统运转(选购)
Negative-pressure system (optional)
RS485通讯功能,实现自动化管理(选购)
RS485 communication function for automated management (optional)
即时冷却关机功能(选购)
Instant cooling return oil shut-down function
隔离式电器控制箱,延长电器使用年限
Isolated electric box for longer services lives of electric appliances
热油BY-PASS泄压回路
BY-PASS pressure release loop for hot oil
多点温度控制机组可订作
Customizable multi-point temperature control unit
油泵马力和加热功率可订作
Customizable horsepower and heating power of oil pump
电器采用OMRON. FUJI. TE. LG.
Brands OMRON, FUJI, TE and LG for electric appliances
温度控制范围: 常温+25℃→300℃
Range of temperature control: +25℃→300℃ for incoming water
304不锈钢一体管路,减少管阻及锈垢
304 stainless steel integrated pipelines for less pipe resistance and rust
控制方式: 采用进口微电脑或(选购)PLC控制
Control mode: imported microcomputer or PLC (optional)
安全保护完善,故障显示, 维修.保养无需专业人员
Perfect safety protection, fault display, easy repair and maintenance even free of professionals
应用范围:辊轮加温、平板硫化机控温、反应釜控温、复合机控温、射出成型模具控温、捏合机加温、锌铝合金压铸、镁合金射出成型。
模型Model |
单位UNIT |
TOB-20 |
TOB-30 |
TOB-50 |
TOB-75 |
TOB-100 |
TOB-150 |
|
温控范围 Control range |
℃ |
300℃ |
||||||
温控精度 Temp.control accuracy |
℃ |
PID±1℃ |
||||||
电源 Power supply |
|
AC 3φ380V50HZ(or other)或其它 |
||||||
传热媒体 Heat.transfer medium |
|
导热油CEAT TRANSFER OIL |
||||||
冷却方式 Cooling method |
|
间接冷却INDIRECT C00LING |
||||||
加热能量Heating capacity |
KW |
18/24 |
24/30 |
36/50 |
60/70 |
80/100 |
110/150 |
|
泵浦马力(功率)Horsepower of Pump |
HP/KW |
2/1.5 |
3/2.25 |
5/3.75 |
7.5/5.6 |
10/7.5 |
15/11 |
|
泵浦工作流量 Working flow of pump |
L/MIN |
50 |
180 |
250 |
300 |
500 |
750 |
|
泵浦工作压力Working pressure of pump |
KG/C㎡ |
2.5 |
2.8 |
3.2 |
3.8 |
4.9 |
4.0 |
|
大电力消耗Maximum power consumption |
KW |
19/26 |
26/27 |
29/50 |
66/68 |
72/100 |
106/132 |
|
警报功能 Alarm function |
|
缺相/缺油/超温/过载/反转 |
||||||
冷却水配管Cooing water pipework |
INCH |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|
循环油配管Circulation oil pipe |
INCH |
3/8x2 |
3/8x4 |
3/8x4 |
3/8x4 |
3/4x4 |
(3/8x4)x2 |
|
外型尺寸 LxWxH |
MM |
1050x420x960 |
1050x420x960 |
1560x580x1310 |
2000x600x1600 |
2000x600x1600 |
2000x600x1600 |
|
重量 Weighht |
KG |
/ |
/ |
/ |
/ |
/ |
/ |
